20+ years of focusing on pipe profile shaping
Providing One-Stop Integrated Solution Service

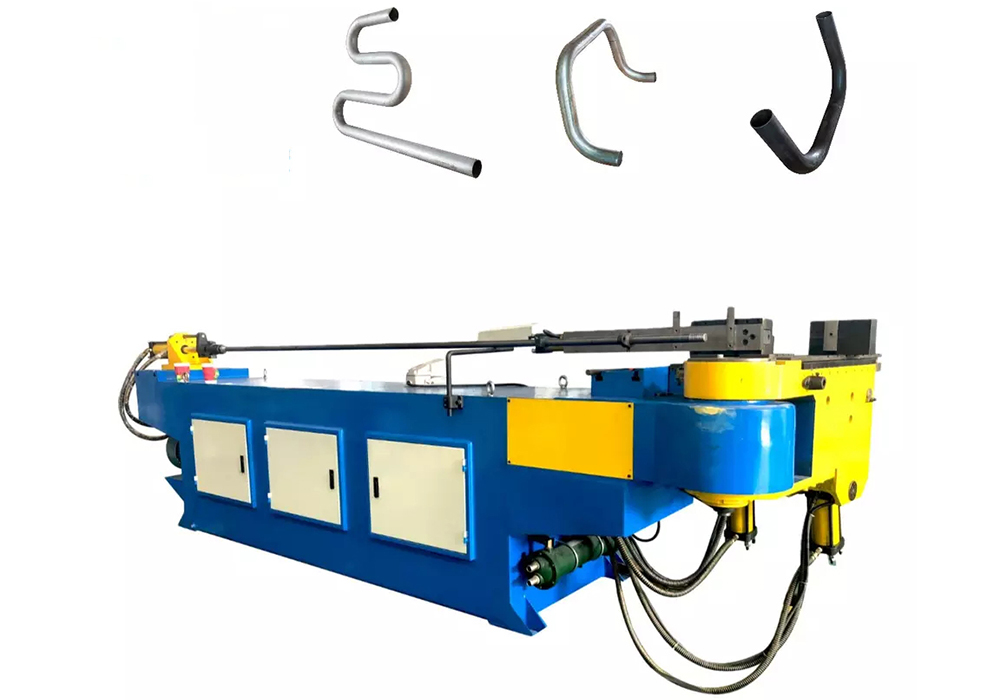

100 NC Pipe Bending
|
Model Name |
DW89NC |
DW100NC |
DW115NC |
DW130NC |
|
Round lron Pipe |
Φ89 x8t |
Φ100 x8t |
Φ115 x8t |
Φ130x10t |
|
Round SS Pipe |
Φ75 x8t |
Φ80 x8t |
Φ89 x8t |
Φ100 x10t |
|
Square Tube(mm) |
60 x60x 8t |
70 x 70 x 8t |
80 x 80 x 8t |
90 x 90x 10t |
|
Round Bar(mm) |
Φ60 |
Φ70 |
Φ80 |
Φ90 |
|
Max Bending Radius |
450 |
500 |
520 |
520 |
|
Min Bending Radius |
30 |
50 |
90 |
90 |
|
Mandrel Length |
3500 |
3600 |
4500 |
4500 |
|
Max bending degree |
190 degrees |
|||
|
Motor power |
11 |
15 |
22 |
22 |
|
Hydraulic Pressure |
14 |
|||
|
Oil Tank Capacity |
260 |
300 |
350 |
400 |
|
Measurement |
4320x1300x1200 |
500x1600x1200 |
5700x1300x1600 |
6000x1600x1800 |
|
Weight |
3500 |
5000 |
7000 |
8000 |
