  • DW18CNC fully automatic pipe bending machine technical parameters简介
  1. Introduction

The product is controlled by an industrial computer and driven by hydraulic pressure. The display operating system is a touch-sensitive Chinese menu type, with a variety of prefabricated bending angles, Chinese subtitle display, and human-machine dialogue operation. Manual, semi-automatic, and fully automatic operation modes can be selected at will. , the mobile foot switch has both start and emergency stop functions.

The hydraulic system, control system, drive system, display system, etc. all use high-reliability imported parts, with high precision, high efficiency, suitable for mass production, and have international and domestic advanced levels.

It is a CNC fully automatic pipe bending machine. It is equipped with a fully functional device for bending three-dimensional space pipe fittings. The entire pipe bending process is automatically completed by inputting the program. The whole machine has the characteristics of easy operation, stable performance, high work efficiency and high safety factor. It is an ideal equipment for the pipe fitting processing industry.

  1. Technical parameters

serial number

name

unit

parameter

Remark

1

Maximum bending diameter

mm

Φ18×1.6mm



2

Maximum bending radius

mm

R80mm

Can be based on customer requirements

3

Minimum bending radius

mm

According to pipe diameter



4

Maximum feeding length

mm

1500

Can be based on customer requirements

5

maximum radius difference

mm

80



6

Feeding method



  1. Direct delivery
  2. Pinch

Optional

7

Maximum bending angle

Degree

190



8

Use the controller



PLC+tablet



9

The number of bends that can be set for each pipe fitting

45

Can be based on customer requirements

10

Speed of work

Bending speed

Deg/sec

200

Adjustable





Tube transfer speed

Deg/sec

200

Adjustable





Feeding speed

Mm/sec

1000

Adjustable

11

Accuracy

Feeding accuracy

mm

±0.1







Tube rotation accuracy

Degree

±0.1







Bending accuracy

Degree

±0.1



12

Rotary tube servo motor power

W

400

Mitsubishi

13

Feeding servo motor power

W

750

Mitsubishi



Bend pipe private server motor power

W

2000

Mitsubishi

14

Data input method



1、coordinate value(X、Y、Z)
2、work value(Y、B、C)

Optional

15

Hydraulic motor horsepower

Kw

3



16

greatest pressure

MPa

10

Adjustable

17

Hydraulic system control



Solenoid directional valve

Nippon Yuken

18

Fuel tank capacity

L

150



19

Machine weight

Kg

800



20

Machine size

cm

276×690×100

  1. Machine configuration

Name

supplier

Solenoid directional valve

Yuken

relief valve

Yuken

stack valve

Yuken

servo motor

Mitsubishi

Servo controller

Mitsubishi

Programmable Controllers

Mitsubishi

rack

Germany Atlanta

vane pump

NOVA (Sino-US joint venture)

straight track

Shanghai silver

Seals

Taiwan Dingji

Reducer

Pinhong

Control System

Mitsubishi

AC contactor

Schneider

Thermal overload relay

Schneider

fuse

Schneider

Proximity switch

Omron

switch

MEAN WELL

electric motor

Wuxi Taihu Lake

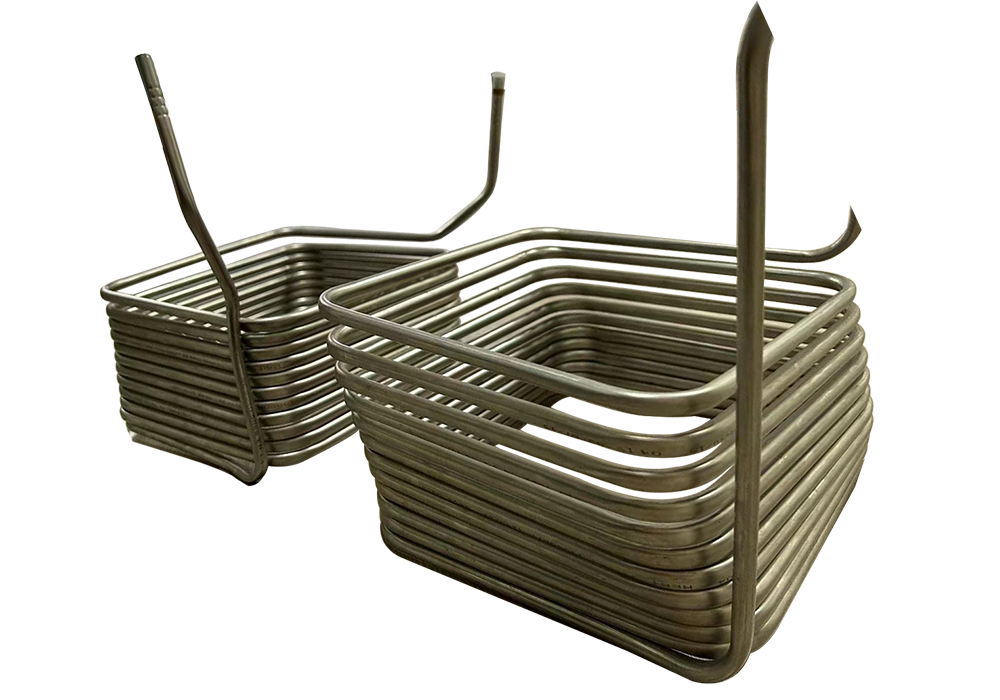

1.Equipment usage

This equipment is a CNC fully automatic pipe bending machine. It is equipped with a fully functional device for bending three-dimensional space pipe fittings. The entire pipe bending process is automatically completed by inputting the program. The whole machine has the characteristics of easy operation, stable performance, high work efficiency and high safety factor. It is an ideal equipment for the pipe fitting processing industry.

2.Equipment characteristics

2.1. Structural type

  1. The CNC pipe bending machine adopts a rotating arm lifting type pipe clamping structure.
  2. Adopt hydraulic guide plate side push mechanism.
  3. The bending direction of the pipe fitting is clockwise when viewed from above, which is the direction of the pipe bend.

2.2. Electrical control and operation interface

  1. The operating interface of the CNC hydraulic pipe bending machine adopts a touch screen.
  2. Digital display resolution: bending angle 0.01°, tube rotation 0.01°, feeding 0.01mm.
  3. The CNC hydraulic pipe bending machine control system adopts PLC+tablet computer control.
  4. The bending parameters can be set (preset) on the operation interface. .

2.3. CNC hydraulic pipe bending machine equipment has the following characteristics:

  1. Operating system: Professional version of WINDOWS XP operating system.
  2. Using Windows conversational icon guidance, the operation is simple and easy to learn, and the program input method is concise and systematic.
  3. Standard display text: Chinese/English switching. (Other text can be changed according to needs)
  4. The maximum bending program memory capacity is 2 million groups, and each group can program up to 45 bends.
  5. Directly input the bending processing parameters. The machine can be executed in a single step and paused during automatic operation, so that manual intervention can be performed when bending special pipe fittings, and automatic operation can also be resumed. It also has a pause function, automatic and manual functions. After one cycle, the switch is used to start the next cycle. When an emergency stop is needed, the emergency stop button is used.
  6. The memory storage time of operating programs and pipe bending programs is unlimited, and the programs will not be lost due to power outage or long-term non-use.
  7. Both programs and data are equipped with user password setting functions, which in addition to protecting data from arbitrary changes by others. Each piece of data can be traced back to the person who modified it, making it easier to manage data and identify responsibilities.
  8. The latest 1,000 bending processing contents can be recorded to facilitate management by producers.
  9. While the machine is performing automatic processing, the controller can still be used to input or edit programs.
  10. It has the function of converting XYZ coordinate values to YBC processing values, making it convenient for operators to use.
  11. After the program is entered, the full length of the pipe fitting can be automatically calculated.
  12. With program mirroring function, the symmetrical shape program of a bending pipe program can be quickly obtained.
  13. It has a program reversal function, which can quickly change to the program at the starting point of the other end.
  14. When editing the program, there is a sub-program column for input of fine-tuning correction values. The original processing data will not be lost after correcting the program multiple times due to proofing.
  15. The pipe bending program can set the independent movement speed of each axis from 0 to 9 in ten steps in each processing step, so as to flexibly use it for different work objects and improve work efficiency. There is also an external speed knob to reduce or increase the processing speed as needed.
  16. When automatic, it has pull-back feeding and reciprocating feeding functions for switching to meet different pipe fitting processing needs.
  17. Equipped with processing volume and processing time counting functions.
  18. Using the absolute origin system, you can restart the machine every morning or after a break. You can immediately enter the work standby state without complicated procedures to find the origin of each axis.
  19. The screen simultaneously displays the position status and bending angle changes of each action axis of the machine.
  20. When the machine is performing automatic processing, the controller can still be used to input or edit programs, which saves time.
  21. If an accidental situation or error occurs during automatic processing and the machine action is suspended, you can still choose to let the machine continue to complete the unfinished work of the pipe fitting after the situation is eliminated, so as to avoid waste of pipe fittings.
  22. It has the automatic position inspection function of Y-axis (feeding material). After setting the inspection accuracy, you can check whether the position of the Y-axis is deviated due to the extension of different pipes at any time during automatic processing, so as to promptly detect dimensional defective products in mass production.
  23. It has the function of synchronization between the Y (feeding) axis and the C (bending pipe) axis. The Y axis automatically tracks the bending arc length of the C axis and matches the set pipe elongation rate to avoid elongation of pipe fittings due to bending and improve accuracy.
  24. The control program has a text display function that automatically detects errors and countermeasures. Messages about machine failures or illogical operations are directly displayed on the screen, with instructions on how to repair them, to prevent human errors from damaging the machine and reduce maintenance. Difficulty. The above-mentioned automatically detected alarm message records can be automatically saved for future maintenance reference.
  25. The automatic or manual mode setting function can set a variety of different working modes according to the nature of the work, such as whether there is penetration, auxiliary pushing and other different states to improve production efficiency.
  26. With multiple delay parameter settings, the most appropriate time difference can be set for each action axis to meet various bending change requirements.
  27. With the automatic detection function of each button and circuit output/input board, the possible fault location can be easily found.
  28. The machine is equipped with an automatic lubrication system to protect the machine's transmission parts and increase the service life of the machine.
  29. Machine control adopts closed-loop control.
